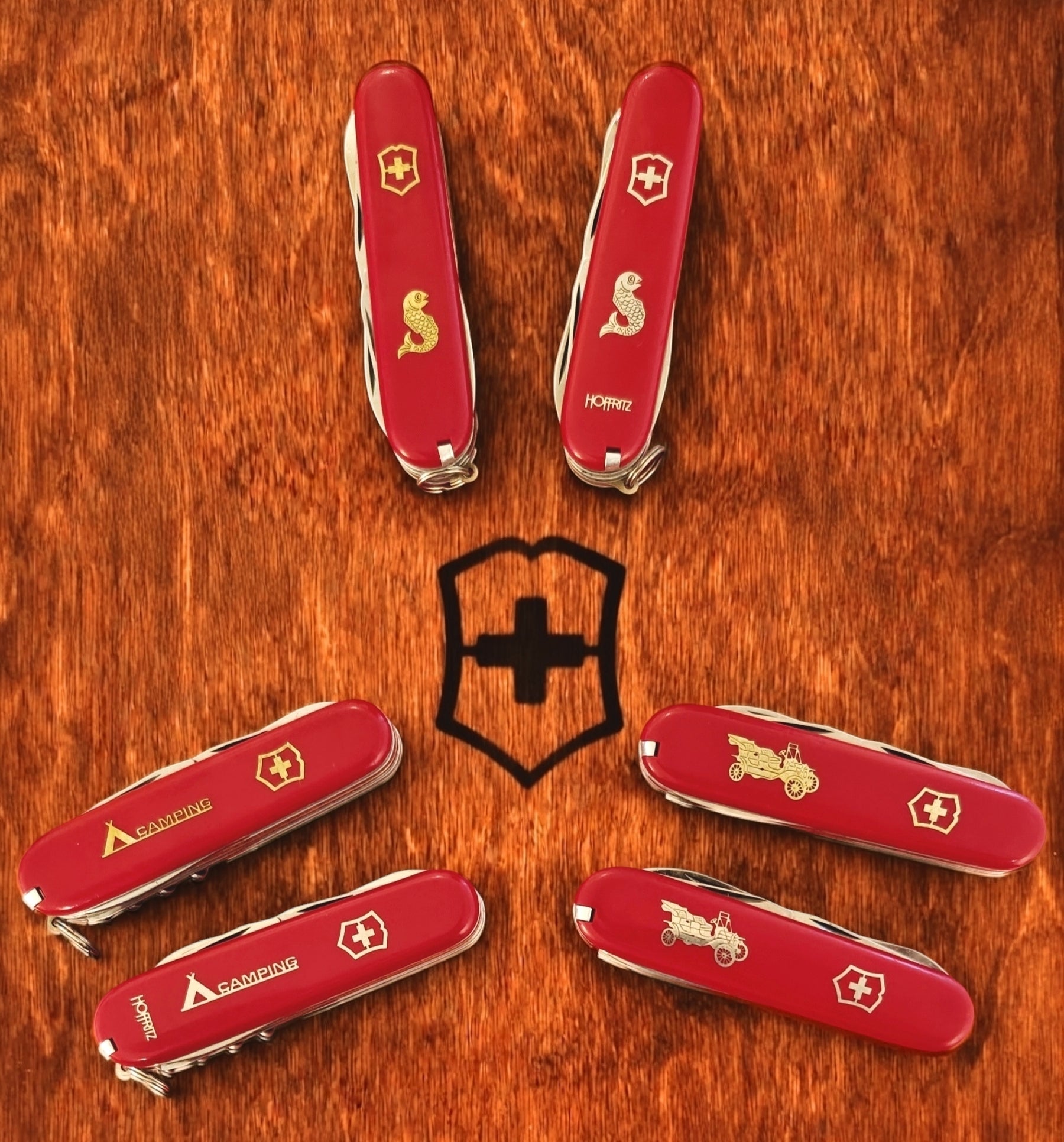

How Metal Inlay Materials Changed in Victorinox Knives During the 1970s
During the 1970s, Victorinox metal inlays remained consistently represented in the official catalogue, but their material and manufacturing evolution from nickel-silver to stainless steel offers rich insight for collectors and historians.
The subtle changes in inlay geometry and tooling reflect industrial realities rather than stylistic whims, making 1970s inlays essential markers for catalogue evolution and collector identification.
For a detailed analysis of this evolution, see dedicated article:
📜1973–1985 · Rationalisation era
The Camping Inlay – Subtle Evolution Through the Decade 🏕️
Camper and Ranger – Subtle Evolution, Same Identity
The Camping inlay remained a consistent example of Victorinox metal inlays through the 1970s, transitioning from nickel-silver to stainless steel while retaining clearly identifiable geometry.
The Camping inlay remained exclusive to the Camper
and Ranger throughout the 1970s.
Three clearly identified variants
-
Early 1970s – Nickel-silver (gold tone)
Very fine lines, high level of detail
Characteristic thin letter connections and elegant geometry -
Transition period (1973–1976) – Stainless steel
Same geometry and line work
Only the material changes from nickel-silver to stainless steel -
Just before 1976 – Reinforced design
Noticeably thicker lines
Punching tools were clearly redesigned to cope with stainless steel
This version remained unchanged until the Camping inlay disappeared in the 1990s
🏕️ 3 known variants of the Camping inlay.
The Fish (Seahorse) Inlay and 1970s Tool Set Changes 🎣
Fisherman, Angler and the End of the 5-Layer Era
The iconic Fish / Seahorse inlay appears:
-
on the Fisherman,
-
on the 235fm, often referred to as the 5-layer or Deluxe Angler, that seems to disappear by the end of the decade.
-
in the early 1970s, the original Angler — sharing the Fisherman’s 4-layer toolset but fitted with a corkscrew — also receives the Fish inlay.
Over the course of the 1970s, this model evolves from a discreet Fisherman variant into the officially named Angler
Fish inlay evolution
-
Nickel-silver
Fine lines, high detail, strong relief -
1973–1976 – Stainless steel
Identical geometry, same level of detail -
Late 1970s – Simplified design
Thicker lines, fewer details, adapted for stainless steel punching
🎣 3 distinct Fish inlay variants, mirroring the Camping evolution.
👉🎣 Victorinox Fishing Line - Fish Scaler, Fisherman & Angler Evolution
Hoffritz Retailer Variants – Dual Inlay Identity
Hoffritz variants of the Fish and Camping inlays feature the Hoffritz name executed as a metal inlay, integrated directly into the scale alongside the thematic symbol.
Hoffritz variants stand out in collector circles for their dual use of thematic symbols and Victorinox metal inlay identity within the 1970s catalogue evolution.
The Ford T Inlay – A Unique Case in 1970s Victorinox History 🚗
A Unique Evolution Through the 1970s
The Ford T inlay stands as a complex case in Victorinox metal inlays history, spanning nickel-silver and stainless steel executions across the decade.
The Ford T inlay is associated with:
-
the Grand Prix
-
and the Automobile Special (Grand Prix Junior)
A few early-1970s Automobile models with an inline technician screwdriver and Ford T inlay have been observed — extremely rare transitional pieces.
Five documented variants
-
Nickel-silver, gold tone – 1973 only
Ultra-fine lines
12 spokes on the rear wheel
Highly detailed steering wheel and windshield
Found only on early knives still fitted with Victoria blades and clip-point pen blades -
Stainless steel – 1973 to 1976
Same fine-line design
Still 12 spokes -
Nickel-silver, thicker lines – mid to late 1970s
Simplified geometry
10 spokes on the rear wheel
Clear adaptation to manufacturing constraints -
Stainless steel – late 1970s to early 1980s
Same thick-line design
Coexisted with nickel-silver versions
Likely to exhaust remaining stocks of gold-tone shield scales -
Final Ford T inlay – around 1983
Stainless steel only
Modernized, simplified, less “vintage” appearance
Remained unchanged until the disappearance of Grand Prix and Automobile Special models in the 1990s
🚗 5 Ford T variants, a unique case in Victorinox history.
Why Stainless Steel Was Harder to Punch Than Nickel-Silver
Explains industrial constraints & design outcomes
Nickel-silver is relatively ductile:
-
easy to stamp with fine details
-
tolerates sharp angles and thin lines
-
low tool wear
Stainless steel, by contrast:
-
is harder and more elastic
-
requires higher punching pressure
-
accelerates tool wear
-
forces wider radii and thicker lines to avoid cracks or rejects
This explains why, from the mid-1970s onward, Victorinox inlays show progressively thicker lines and simplified details.
These changes were not stylistic choices — they were industrial necessities.
Conclusion – Subtle but Essential Changes for Collectors
Victorinox metal inlays of the 1970s tell a quiet but essential story:
the transition from traditional materials to modern stainless steel, managed without abrupt breaks in identity.
For today’s collectors, these subtle differences are invaluable.
They provide accurate dating clues, explain rare transitional pieces, and help identify some of the most desirable Swiss Army Knives of the era.
This analysis is based on documented Victorinox catalog records, physical examination of production knives from the 1970s, and collector databases. The material and tooling transitions described reflect confirmed industrial changes rather than aftermarket modifications or non-standard variants.
Explore 1960s origins in:
👉Victorinox Metal Inlays of the 1960s Nickel Silver Models History
See the big transition in:
👉Victorinox Metal Inlays 1973 – A Defining Transitional Year
And corresponding period:
👉1973–1985 · Rationalisation era
Compare with 1980s results in:
👉Victorinox Regular Metal Inlays in the 1980s
This article is part of the Metal Inlays Thematic published in SAKnife Archives, a curated guide exploring the history, intent, and evolution of Victorinox metal inlay Swiss Army Knives.
